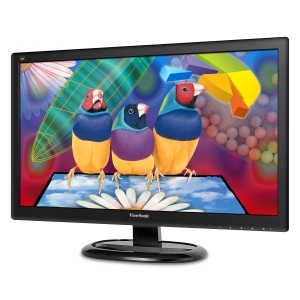

Viewsonic VA2259-SMH - 22 inch 1920 X 1080
Key Features
- VESA Adaptive Sync support: Yes
- Display brightness (typical): 250cd/m²
- USB Type-A downstream ports quantity: 2
- Thin client installed: No
- Flicker-free technology: Yes
- Detachable stand: Yes
- Aspect ratio: 16:9
- Resolution: 1920 x 1080pixels
- Display: LCD, LED
- Display surface: Matt
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Backlight type: W-LED
- Weight (without stand): 4000g
- Height (without stand): 304.4mm
- Width (without stand): 510.7mm
Specifications
Features
Country of origin
China
Compatible operating systems
MacOS, Windows 10
3D
✗
Feet colour
Black
Card reader integrated
✗
Viewable size, vertical
267 mm
On/off switch
✓
Viewable size, horizontal
475 mm
Digital vertical frequency
50 - 75 Hz
Digital horizontal frequency
24 - 82 kHz
Tilt adjustment
✓
Maximum refresh rate
75 Hz
Product colour
Black
Audio input
No, Yes
Aspect ratio
16:9
Resolution
1920 x 1080 pixels
Display
LCD, LED
Display surface
Matt
Supported graphics resolutions
1920 x 1080 (HD 1080)
Backlight type
W-LED
Display brightness (typical)
250 cd/m²
Packaging data
Package type
Box
Package weight
6800 g
Package height
400 mm
Package depth
187 mm
Package width
562 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
380382
Weight & dimensions
Package weight
6.80 kg
Weight (with stand)
4500 g
Height (with stand)
387.60 mm
Depth (with stand)
200 mm
Width (with stand)
548 mm
Weight (without stand)
4000 g
Height (without stand)
304.40 mm
Width (without stand)
510.70 mm
Depth (without stand)
45.50 mm
Display
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen
✗
Native aspect ratio
16:9
Display technology
LCD, LED
Vertical scan range
48 - 76 Hz
Contrast ratio (typical)
1000:1
Horizontal scan range
54 - 85.50 kHz
Display number of colours
16.78 million colours
NTSC coverage (typical)
72 %
sRGB coverage (typical)
104 %
Pixel pitch
0.27 x 0.27 mm
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Contrast ratio (dynamic)
50000000:1
Response time
5 ms
Colour depth
8 bit
Surface hardness
3H
Power
Energy efficiency scale
A+++ to G
Power consumption (typical)
22 W
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
18 kWh
Energy efficiency class (SDR)
E
AC input frequency
50 - 60 Hz
Power consumption (max)
30 W
Power consumption (standby)
0.30 W
Power consumption (average)
17 W
Power consumption (off)
0.30 W
Power consumption (PowerSave)
17 W
Performance
Low Blue Light technology
✓
Number of OSD languages
14
On Screen Display (OSD)
✓
HDCP
✗
TV tuner integrated
✗
Flicker-free technology
✓
VESA Adaptive Sync support
✓
Other features
Cable lock slot type
Kensington
Viewable size diagonal
546 mm
User Guide on CD-ROM
✓
Separate H/V sync
✓
Composite sync
✓
Sync-on-green (SOG)
✓
Design
VESA mounting
✓
Cable lock slot
✓
Panel mounting interface
100 x 100
Screen shape
Flat
Height adjustment
✗
Detachable stand
✓
Packaging content
Quick start guide
✓
Cables included
AC, AUX, Audio (3.5mm), DisplayPort, USB, VGA
Stand included
✓
AC adapter included
✓
Camera included
✗
Network
Wi-Fi
✗
Bluetooth
✗
Ethernet LAN
✗
Ports & interfaces
Headphone out
✓
Headphone outputs
1
AC (power) in
✓
Headphone connectivity
3.5 mm
VGA (D-Sub) ports quantity
1
Built-in USB hub
✗
USB hub version
2.0
DisplayPorts quantity
1
HDMI version
1.4
Mobile High-Definition Link (MHL)
✗
HDMI
✓
Audio output
Yes
HDMI ports quantity
1
DVI port
✗
USB Type-A downstream ports quantity
2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90 %
Technical details
Certification
BIS, BSMI, CB, CE, CE CB, CE EMC, CEC, EAC, ENERGY STAR, EPEAT Silver, ErP, Erp, FCC-B, FCC-B
w/ ICES003, FCC-B w/ ICES003, GEMS, ICES003, MX-CoC, Mexico CoC, Mexico Energy, Mexico-CoC, RCM, REACH, REACH
SVHC List and DoC, REACH SVHC List and DoC, RoHS, RoHS Green BOM & RoHS DoC, TCO 6.0, US NRTL w/ CA, UkrSEPRO, WEEE, WHQL, cTUVus, cUL, cULus
Sustainability certificates
ENERGY STAR, EPEAT Gold, EPEAT Silver
SmartResponse
5 ms
Audio
Built-in speaker(s)
✓
Number of speakers
2
RMS rated power
4 W
Video
HD type
Full HD
Supported video modes
1080i, 1080p
Camera
Built-in camera
✗
Thin Client
Thin client installed
✗
Logistics data
Harmonized System (HS) code
85285210
Pan-tilt unit
Tilt angle range
5 - 20 °
Product Details
22’’ (21.5’’ viewable) Full HD Ergonomic LED Monitor with DisplayPort, HDMI, VGA, and USB
- SuperClear MVA Panel Technology
- 3000:1 static contrast ratio, 20M:1 dynamic contrast ratio
- Integrated dual 2W speakers
The ViewSonic VG2239Smh is a 22’’ (21.5’’ viewable) Full HD LED multimedia monitor with future-proof connectivity and full ergonomic functionality ideal for corporate, government and education. With SuperClear MVA panel technology for wide-angle viewing, and 20M:1 dynamic contrast ratio, this monitor delivers incredibly sharp images and video playback. Integrated with HDMI, DisplayPort, VGA and 2 USB ports, the VG2239Smh allows flexible connection to PC systems, laptops and other multimedia peripheral devices. ViewSonic’s exclusive ViewMode provides intuitive presets to deliver optimized screen performance in different applications. In addition, Flicker-Free and Blue Light Filter technology help to eliminate eye strain from extended viewing periods. The LED backlight design makes this display ENERGY STAR and EPEAT gold certified.
- SuperClear MVA panel technology for stunning color performance and wide-angle viewing
- Future-proof HDMI, DisplayPort, VGA, and USB inputs
- Ergonomic tilt, pivot, swivel and height-adjustable design for maximum comfort and productivity
- Exclusive ViewMode technology delivers superior color rendering and intuitive settings
- Flicker-free and Blue Light Filter technology for more comfortable viewing.
- ENERGY STAR and EPEAT Gold Certification
SuperClear MVA Panel Technology with Wide Viewing Angles
SuperClear MVA panel technology delivers exceptional color performance and extends display viewing angles to 178 degrees both horizontally and vertically. Experience accurate and vivid colors with consistent levels of brightness whether looking at the screen from above, below, the front, or the side—with no color distortion or decay.
Versatile Connectivity with DisplayPort
The latest standard for rapid transmission of data, DisplayPort future-proofs this monitor and delivers the best refresh rate, highest resolution, and incredibly rich colors. This monitor also offers VGA connections, as well as an integrated 2-port USB hub, to support flexibility for both digital and analog media sources, as well as easy connectivity to peripherals and accessories.
The Power of HDMI
HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.
Ergonomic Design for Comfort and Productivity
With advanced ergonomic features, ViewSonic displays provide a greater range of adjustments including swivel, pivot, tilt, and height-adjust options.
ViewMode Settings for Enhanced On-screen Content
With five intuitive scenario presets, ViewSonic’s unique ViewMode feature offers best-in-class screen calibration for accurate color rendering and excellent performance. “Game,” “Movie,” “Web,” “Text,” and “Mono” presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
ViewSonic Flicker-Free Technology
ViewSonic flicker-free monitors deliver a more comfortable viewing experience. Rather than using Pulse Width Modulation that continuously turns the LED backlight on and off, ViewSonic flicker-free monitors use DC modulation backlights that maintain a steady stream of direct current power—nearly eliminating screen flickering at all brightness levels by providing a constant LED light source.
Blue Light Filter for More Comfortable Viewing
ViewSonic monitors feature a Blue Light Filter setting that allows users to adjust the amount of blue light emitted from the screen, enabling longer viewing times and increased eye comfort for work and multimedia applications.
ENERGY STAR Certification
ENERGY STAR is a government-backed program that helps businesses and individuals save money and protect our climate through superior energy efficiency. By choosing ENERGY STAR certified products such as monitors and displays, businesses can save up to 30%* on energy costs while reducing greenhouse gases.
EPEAT Gold Certification
EPEAT (Electronic Product Environmental Assessment Tool) is a definitive global rating system for greener electronics. This monitor has EPEAT Gold Certification, meaning that it meets 100% of EPEAT’s 23 required performance criteria and a minimum of 75% of its 28 optional criteria.
Full HD 1080p for Superior Pixel Performance
This monitor features Full HD 1920 x 1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
Dual Integrated Stereo Speakers
This monitor is designed with two integrated 2W stereo speakers for enhanced multimedia performance with crystal-clear stereo sound.
Mercury-Free LED Backlighting
LED backlighting not only enhances monitor performance, delivers an outstanding color range, and adjusts contrast ratios for remarkably detailed images, but it’s also eco-friendly, mercury-free, and uses less energy than conventional monitors.
Eco-mode Conserves More Energy and Cuts Costs
ViewSonic’s proprietary Eco-mode energy-saving feature is built into all ViewSonic LED monitors. Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue and prolonging the monitor's lamp life. With Eco-mode, the lifespan of the LED backlighting is also greatly increased.
VESA-Mountable
This monitor features a 100 x 100mm VESA-mountable design that allows you to mount the monitor depending on your specific needs.
Industry-leading Pixel Performance Guarantee and 3-Year Limited Warranty
ViewSonic is committed to using the highest grade panels and offers the industry’s leading pixel performance policy. We also back our monitors with a 3-year limited warranty for your peace of mind.
Files
EU Product Fiche
mmo_31982903_1466596580_797_6542.pdf
PDF• 449 KB
Product Brochure
mmo_32788962_1469536349_4175_24220.pdf
PDF• 448.6 KB
User manual
mmo_36518247_1492070895_3512_1288.pdf
PDF• 1016.6 KB
EU Energy Label
JPEG• 85 KB
