101 Audio Video Inc. 2FDT-28W

*Camera default setting is HD-TVI, if your system is not TVI, please follow the instruction to switch camera mode to the same as your system or contact us.

Description:

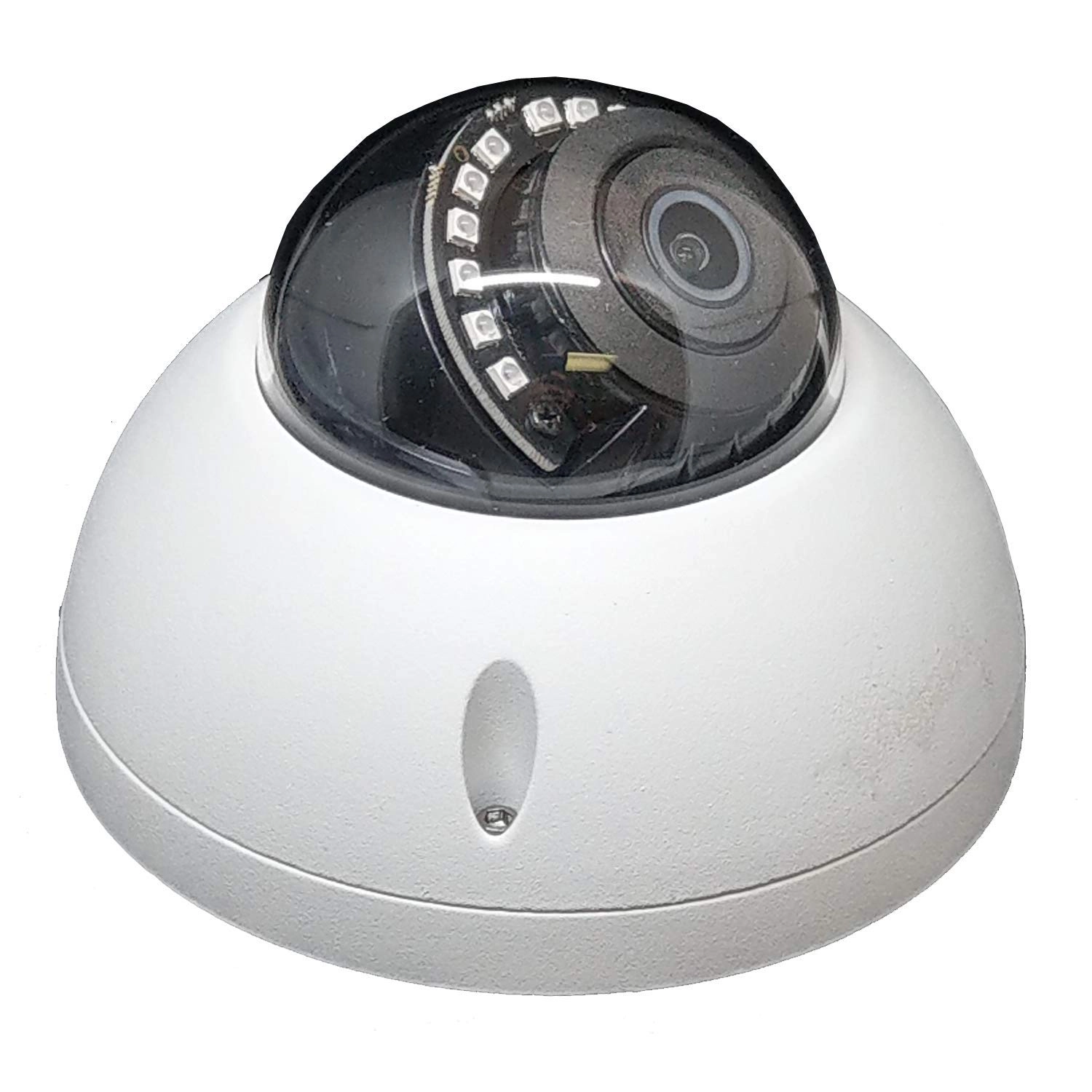

This 4in1 professional IR dome security camera employs 1/2.9″ CMOS Image Sensor with 2MP Resolution and an advanced circuit design.

It adopts advanced image processing technology. The resolution is as high as 1080P, which ensures clear and bright pictures.

It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI, and CVBS and adjust the video setting. It also has WDR function.

Built-in 2.8mm fixed lens, effectively extend your observation range. With 18 pcs IR infrared LEDs, it has 20 meters IR range, can change from color to black automatically and take clear picture during both day time and night time.

The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It’s easy to install. It can protect your office or home effectively.

Specification:

Model# 2FDT-28W

Image Sensor: 1/2.9" 2Megapixel CMOS Sensor

Effective Pixels: 1930(H)x1088(V)

Signal System: NTSC

Resolution: 1080p/ 960H (HD-TVI, HD-AHD, HD-CVI, CVBS

Mini Illumination: 0.001 Lux / F1.2

Lens: 2.8mm Fixed Lens

WDR: On/Off

White Balance / Gain Control: Auto

S/N Ratio: More than 45 dB

Synchronous System: Internal

Video Output: AHD/CVI/CVBS/TVI

Weatherproof: IP66

Operation Temp: 14°F~122°F (-10°C~50°C)

Storage Temp: 14°F~140°F (-10°C~60°C)

Dimensions (mm): 94.5(W) x 76(H)

Power: DC12V/ 500mA

IR Range: 20m IR Range w/ 18pcs IR LEDs

Infrared Lamps: Night/Day ON/OFF

Weight: 400g

What's in the box?

2MP 4in1 True-HD IR Dome security camera x 1; Screws.
